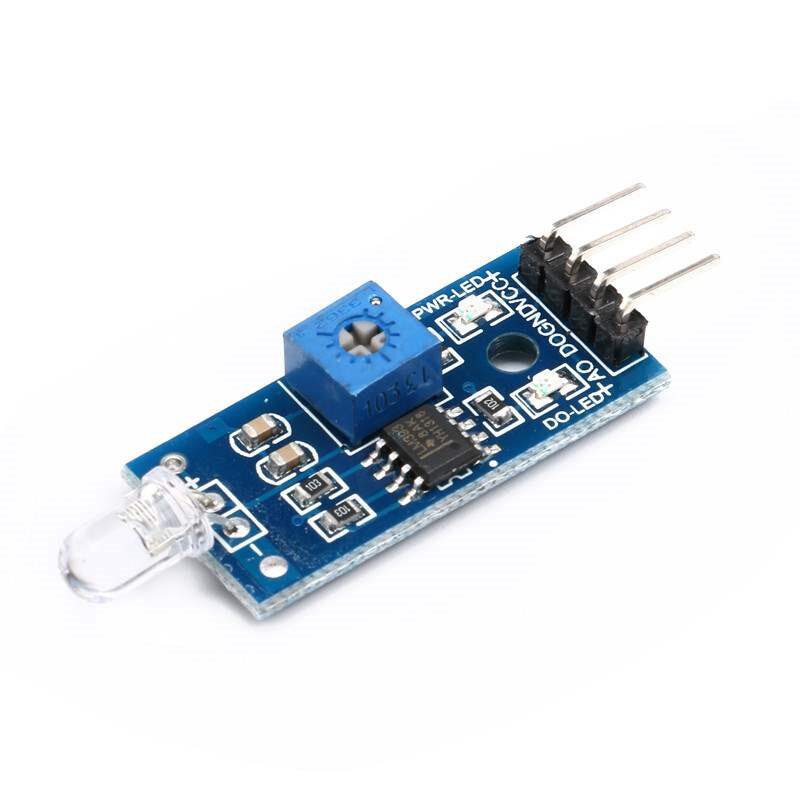

LM393 Light Sensor Module 3.3V 5V For Arduino Raspberry pi Digital Switching Output Light Level Detection

 214

The small board digital output D0 can be connected directly with the microcontroller microcontroller to detect high and low to detect environmental light intensity change

Or

Get in 2 Installments

at RS 107 per month.

With

QISSTPAY

×

All you need to apply is your debit or credit card. We only accept Visa or Mastercard.

Terms and Conditions.You can reach us on info@qisstpay.com.

SKU: CT00024 Category:

Description:
100% brand new and high quality

Usage

Light level detection, the brightness of the light sensor is directional, only inductive sensor in front of the light source used to find light better.

Module Features:
1. The brightness of surrounding environment and the light intensity can be detected (compare with the photoresistor, directivity is relatively good, can perceive the fixed direction of the light source).
2.Sensitivity adjustable the blue digital potentiometer adjustment (Figure)
3. Operating voltage 3.3V-5V
4. Digital switching outputs (0 and 1)
5. With fixed bolt hole for easy installation6. Small board PCB size: 3.2cm * 1.4cm / 1.25″ * 0.55″

Instructions for use:
1. Photodiode module is most sensitive to the ambient light, generally used to detect the brightness of the ambient light intensity, photoresistor sensor module Universal In most cases, the difference between the two is that photodiode module directional, can sense the fixed the direction of the light source
2. Module in the light conditions or the light intensity of less than a set threshold, DO port outputs a high level, when the external environment when the light intensity exceeds the set threshold value, the module D0 output is low.
3. The small board digital output D0 can be connected directly with the microcontroller microcontroller to detect high and low to detect environmental light intensity change4. Small board digital output DO OUR relay module can directly drive, which can be composed of a photoelectric switch

Package includes: 1x Light Sensor Module
